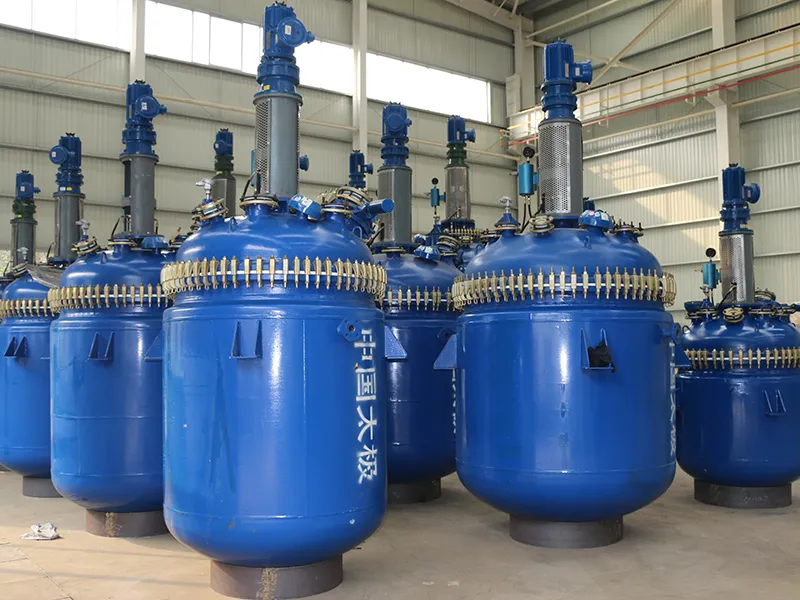

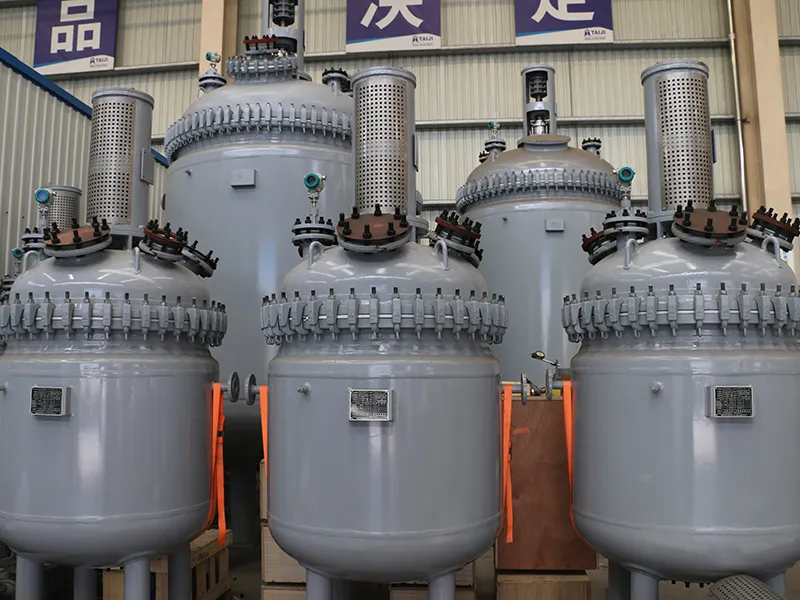

    Glass-Lined Reactor

    Features

    • The K type glass lined reactor is a reactor designed with separable cover and body. The cover is fastened to the body using clamps, with gaskets between them.
    • Generally, this pressure vessel is suitable for the small capacity chemical processing works.
    • Since the cover can be separated from the body, the chemical process equipment comes with a diversity of agitating methods and is excellent for all kinds of users.
    • Made from TJ09/TJ16/TJ21S high end enamel, combining proven and sophisticated enameling technology, this open type glass lined reactor provides remarkable resistance to corrosion, impact and severe change of temperature as well as reliable durability.
    • According to capacities, Our K type glass lined reactors are available in K50L, K100L, K200L, K300L, K500L, K1000L, K1500L, K2000L, K3000L, K4000L, K5000L, K6300L, K8000L, K10000L, K12500L, K16000L and other models. They ensure ease of use and maintenance.
    Request a Quote
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    • Glass-Lined Reactor, K Type
    Technical Parameters of the Glass-Lined Reactor
    Technical Parameters of the Glass-Lined Reactor

    K50L-K500L Glass-Lined Reactor
    • K50L-K500L Glass-Lined Reactor
      K50L-K100L Design Drawing (Plan View)
    • K50L-K500L Glass-Lined Reactor
      K200L-K500L Design Drawing (Plan View)
      Internal Vessel Jacket
    Design Pressure
    ( MPa )    		 0.4 0.6
    Design Temperature
    ( ℃ )    		 -19~200 -19~200
    Symbol Usage
    a Manhole
    b Agitator Hole
    c Thermowell
    d Medium Outlet
    e1,e2 Sightglass
    f,g Spare
    k1,k2,k3,k4 In/Outlet
    m Vent Hole
    Specifications (Unit:mm)
    Model K50 K100 K200 K300 K500
    Nominal Capacity (L) 50 100 200 300 500
    Total Capacity (L) 104 180 338 483 743
    Calculated Capacity (Notes 1) (L) 71 128 247 369 588
    Jacket Capacity (L) 21 32 57 92 130
    Heat Exchange Area (m2) 0.53 0.85 1.26 1.75 2.64
    Reference Weight (kg) 310 380 595 795 985
    Dimensions d1 500 600 700 800 900
    d2 600 700 800 900 1000
    d3(Notes 2) 872 987 1087 1188 1288
    d4 420 520 620 720 810
    d5 300 300 400 500 500
    h1 400 500 700 800 1000
    h2 280 310 355 390 415
    h3 220 250 270 280 280
    h4 300 340 370 390 400
    h 1800 1920 2450 2725 2955
    B 250 250 250 250 270
    Φ 24 24 24 24 24
    Vessel Nozzle DN a 80 80 125 125 150
    b 65 65 100 100 100
    c 65 65 65 65 65
    d 65 65 80 80 80
    e1 65 65 65 65 80
    e2 / / 65 65 80
    f 65 65 80 80 100
    g / / 65 65 125
    Jacket Nozzle DN k1 20 20 25 25 32
    k2 20 20 25 25 32
    k3 20 20 25 25 32
    K4 20 20 25 25 32
    m G3/8'' G3/8'' G3/8'' G3/8'' G3/8''
    Drive DN 40 40 50 65 65
    h5 980 980 1250 1400 1400
    Notes 1: Calculated Capacity:Volume under highneck flange.
    Notes 2: Support types could be determined by users;Without special request,lugs would be normally applied.

    K1000L-K6300L Glass-Lined Reactor
    K1000L-K6300L Glass-Lined Reactor
    K1000L-K6300L Design Drawing (Plan View)
      Internal Vessel Jacket
    Design Pressure
    (MPa)    		 0.4 0.6
    Design Temperature
    ( ℃ )    		 -19~200 -19~200
    Specifications (Unit:mm)
    Model K 1000 K 1500 K 2000 K 3000 K 4000 K 5000 K 6300
    Nominal Capacity (L) 1000 1500 2000 3000 4000 5000 6300
    Total Capacity (L) 1616 2172 2640 4170 5140 6470 7580
    Calculated Capacity (Note 1) (L) 1244 1714 2180 3370 4334 5443 6561
    Jacket Capacity (L) 206 340 434 520 670 873 1027
    Heat Exchange Area (m²) 4.55 5.76 7.23 9.33 11.85 13.74 16.43
    Half-Pipe Coil Heat Exchange Area (m²) 1.8 2.8 3.6 4.0 5.3 7.0 8.4
    Reference Weight (kg) 1700 2155 2415 3500 4055 4840 5490
    Dimensions (mm) d1 1200 1300 1300 1600 1600 1750 1750
    d2 1300 1450 1450 1750 1750 1900 1900
    d3 (Note 2) 1638 1915 1915 2221 2221 2412 2412
    d4 1080 1180 1180 1440 1440 1580 1580
    d5 700 700 700 800 800 850 850
    h1 1200 1400 1830 1810 2290 2410 2875
    h2 495 520 520 605 605 642.5 642.5
    h3 290 330 330 340 340 340 340
    h4 600 650 650 700 700 700 700
    h 3445 3660 4010 4280 4745 4900 5470
    B1 315 315 315 315 315 350 350
    B2 350 400 400 450 450 500 500
    Φ 30 30 30 30 30 30 30
    Vessel Nozzle DN (mm) a 300x400 300x400 300x400 300x400 300x400 300x400 300x400
    b 125 125 125 150 150 150 150
    C 100 100 100 100 100 125 125
    d 100 100 100 100 100 125 125
    e 100 125 125 125 125 125 125
    f 125 125 125 125 125 150 150
    g 100 100 100 100 100 125 125
    h 100 125 125 125 125 150 150
      100 100 100 125 125 125 125
    Jacket Nozzle DN (Note 3) (mm) k1 32/32 40/50 40/50 50/50 50/50 65/50 65/50
    k2 32 40 40 50 50 65 65
    k3 32/32 40/50 40/50 50/50 50/50 65/50 65/50
    k4 32 40 40 50 50 65 65
    m G3/8” G3/8" G3/8” G3/8” G3/8” G3/8” G3/8”
    Drive (Note 4) (mm) dN 80 80 80 95 95 95 95
    h5 1580 1580 1580 1680 1680 1680 1780

    Notes

    • Calculated Capacity
      Volume: Measures the capacity below the high neck flange. This does not include the volume taken up by the flange itself.
    • Support Options
      The type of support used to hold the reactor can be specified by the customer when placing an order. If no preference is indicated, the default support type will be lugs attached to the exterior.
    • k1 and k3 Values
      The dimensions k1 and k3 will vary depending on whether the reactor has a full jacket or half pipe heating/cooling system.
      For a full jacket, use the values listed before the slash (/)
      For half pipes, use the values after the slash (/)
    • Drive Device Parameters
      Reference Only: The provided drive device parameters are for reference purposes.
      Actual Selection: The final selection of the rack reducer type will be determined based on the specific requirements of the application.

    K8000L-K16000L Glass-Lined Reactor
    • K8000L-K16000L Glass-Lined Reactor
      K8000L Design Drawing (Plan View)
    • K8000L-K16000L Glass-Lined Reactor
      K10000L-K16000L Design Drawing (Plan View)
      Internal Vessel Jacket
    Design Pressure
    ( MPa )    		 0.2 0.6
    Design Temperature
    ( ℃ )    		 -19~200 -19~200
    Specifications (Unit:mm)
    Model K 8000 K10000 K12500 K16000
    Nominal Capacity (L) 8000 10000 12500 16000
    Total Capacity (L) 10380 12870 15380 18500
    Calculated Capacity (Note 1) (L) 8897 10930 13440 16000
    Jacket Capacity (L) 1724 1940 2324 2500
    Heat Exchange Area (m²) 19.6 21.54 26.5 28.0
    Half-Pipe Coil Heat Exchange Area (m²) 9.4 10.5 12.4 14.5
    Reference Weight (kg) 7560 8380 9950 12550
    Dimensions (mm) d1 2000 2200 2200 2400
    d2 2200 2400 2400 2600
    d3 (Note 2) 2763 2964 2964 3238
    h1 3000 3060 3720 3740
    h2 710 770 770 825
    h3 380 400 400 460
    h4 830 850 850 900
    h 5930 6010 6690 6850
    B1 400 470 470 470
    B2 700 700 700 700
    Φ 36 36 36 36
    Vessel Nozzle DN (mm) a 125 150 150 150
    C 300x400 300x400 300x400 450
    d 200 200 200 200
    e1 200 200 200 200
    e2 150 200 200 200
    g1 150 150 150 150
    g2 150 150 150 150
    g3 150 150 150 150
    g4 / 150 150 150
    S 125 125 125 125
    k 125 125 125 125
    Jacket Nozzle DN (Note 3) (mm) b1 65/65 80/65 80/65 100/65
    b2 65 80 80 100
    b3 65/65 80/65 80/65 100/65
    b4 65 80 80 100
    m G3/4” G3/4” G3/4” G3/4”
    n G1/2” G1/2” G1/2” G1/2”
    Drive (Note 4) (mm) dN 110 110 110 110
    h5 2000 2000 2020 2090

    Notes

    • Calculated Capacity
      Volume: Measures the capacity below the high neck flange. This does not include the volume taken up by the flange itself.
    • Support Options
      The type of support used to hold the reactor can be specified by the customer when placing an order. If no preference is indicated, the default support type will be lugs attached to the exterior.
    • b1 and b3 Values
      The dimensions b1 and b3 will vary depending on whether the reactor has a full jacket or half pipe heating/cooling system.
      For a full jacket, use the values listed before the slash (/)
      For half pipes, use the values after the slash (/)
    • Drive Device Parameters
      Reference Only: The provided drive device parameters are for reference purposes.
      Actual Selection: The final selection of the rack reducer type will be determined based on the specific requirements of the application.
