Glass-Lined Storage Tank, Horizontal Type

Horizontal Type

Glass-Lined Storage Tank

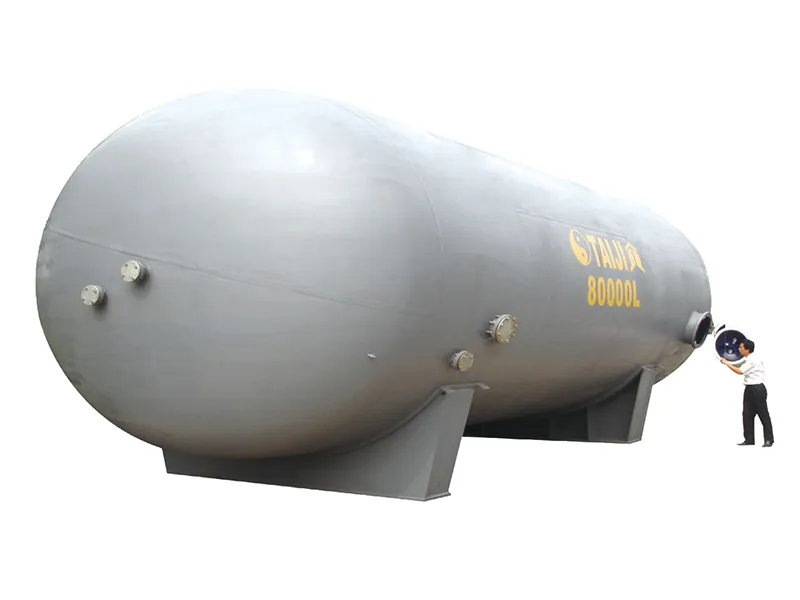

For large volume storage purposes, our horizontal glass lined storage tank is a preferred choice. This horizontal storage tank is specially designed to store a large capacity of corrosive materials from 3000L to 80000L. According to different capacities, it offers different model selections including W3000L, W4000L, W5000L, W6300L, W8000L, W10000L, W12500L, W16000L, W20000L, W30000L, W40000L, W50000L and W80000L. These are standard glass lined storage tanks that we can supply. Aside from that, we also design and manufacture non-standard products based on your specifications.

In addition to large volumes, the horizontal type glass lined storage vessels from Taiji are characterized by strong corrosion resistance, reliable quality, stable and not-easy-to-break glass lining and superior durability.

Request a Quote

Technical Parameters of the Glass Lined Storage Tank

•

•

	Inner Vessel
Design Pressure (MPa)	ATM
Design Temperature ( ℃ )	-19 ℃ /150℃

Symbol	Usage
a1, a2, a3, a4	Level Gauge Hole
b	Medium Inlet
c, d	Spare
e	Manhole
f	Medium Outlet

Model		W3000	W4000	W5000	W6300	W8000	W10000	W12500	W16000	W20000	W30000	W40000	W50000	W80000	W100000
Nominal Capacity (L)		3000	4000	5000	6300	8000	10000	12500	16000	20000	30000	40000	50000	80000	100000
Total Capacity (L)		3337	4457	5550	7024	8913	11094	13915	17689	22332	33420	43310	55020	87933	106930
Reference Weight (kg)		1705	2050	2250	3230	3750	4790	5690	6530	8240	12300	15000	19730	32000	34500
Dimensions (mm)	d	1450	1450	1600	1750	1900	2000	2000	2200	2400	3000	3000	3400	3800	400
	h1	1089	1089	1166	1243	1318	1370	1370	1470	1572	1876	1876	2080	2284	2432
	h	2100	2100	2300	2455	2605	2705	2705	2870	3100	3750	3750	4110	4510	4895
	L1	814	1494	1420	1474	1590	1880	2740	2840	2930	2370	3770	3330	4290	5000
	L2	320	320	360	390	420	450	470	500	550	630	630	750	1050	1050
	L3	1454	2134	2140	2254	2430	2780	3680	3840	4030	3630	5030	4830	6390	7100
	L	2288	2968	3052	3246	3496	3920	4800	5060	5374	5282	6682	6690	8438	9250
	K	900	900	960	1120	1200	1260	1260	1380	1520	1940	1940	2200	2500	2660
	A	1060	1060	1120	1280	1360	1420	1420	1580	1720	2180	2180	2480	2780	2940
	n-Φ	4-φ24	4-φ24	4-024	4-φ24	4-φ24	4-φ24	4-φ24	4-φ24	4-φ24	4-φ28	4-φ28	4-φ28	4-φ28	4-φ28
Vessel Nozzle DN (mm)	a1	65	65	65	65	65	65	65	65	65	65	65	80	100	125
	a2	65	65	65	65	65	65	65	65	65	65	65	80	100	125
	a3	65	65	65	65	65	65	65	65	65	65	65	80	100	125
	a4	65	65	65	65	65	65	65	65	65	65	65	80	100	125
	b	80	80	80	80	80	100	100	100	100	100	100	150	150	150
	C	65	65	65	65	65	80	80	80	80	80	80	80	80	80
	d	65	65	65	65	65	80	80	80	80	80	80	80	80	80
	e	300x400	300x400	300x400	300x400	300x400	450	450	450	450	450	450	450	450	450
	f	80	80	80	80	80	100	100	100	100	100	100	150	150	150

The glass-lined storage tank combines structural strength of steel with the corrosion resistance of the glass lining. The glass-lining process applies porcelain enamel and forms a glass lining on the inner steel surface. The glass lining forms the product-contact surface for the storage of compatible corrosive materials.

The glass-lined storage tank is commonly used in processes with high requirements for corrosion control, material purity and contamination control.

The smooth glass lining surface allows for easy cleaning and material discharge. Selection of equipment and applicable enamels should be determined based on stored materials, concentration, temperature, and operating conditions.

The horizontal glass-lined storage tank is suitable for bulk storage of corrosive materials compatible with the glass lining and can be used for raw material storage, intermediate storage, temporary holding, receiving and finished product storage.

Applicable materials include acidic media, organic solvents, alcohols and chemical intermediates compatible with the glass lining, and other materials used in applications where corrosion-resistant equipment and a nonmetallic product-contact surface are required for contamination control.

Selection of equipment models should be based on the chemical composition, concentration, operating temperature, and specific process conditions of the stored materials, and the compatibility with the glass lining.
